KAVAN FS120AR. EXPECTED LATE JULY
KAVAN FS120AR. EXPECTED LATE JULY
Couldn't load pickup availability
KAVAN four-stroke engines are an excellent choice for any "Sunday flyers“ sporty, aerobatic or scale model aircraft. Reliable operation and very easy running-in and fine-tuning make them a great choice great value & affordable engine option. Given adequate care and maintenance, they will reliably power your models for many years to come.

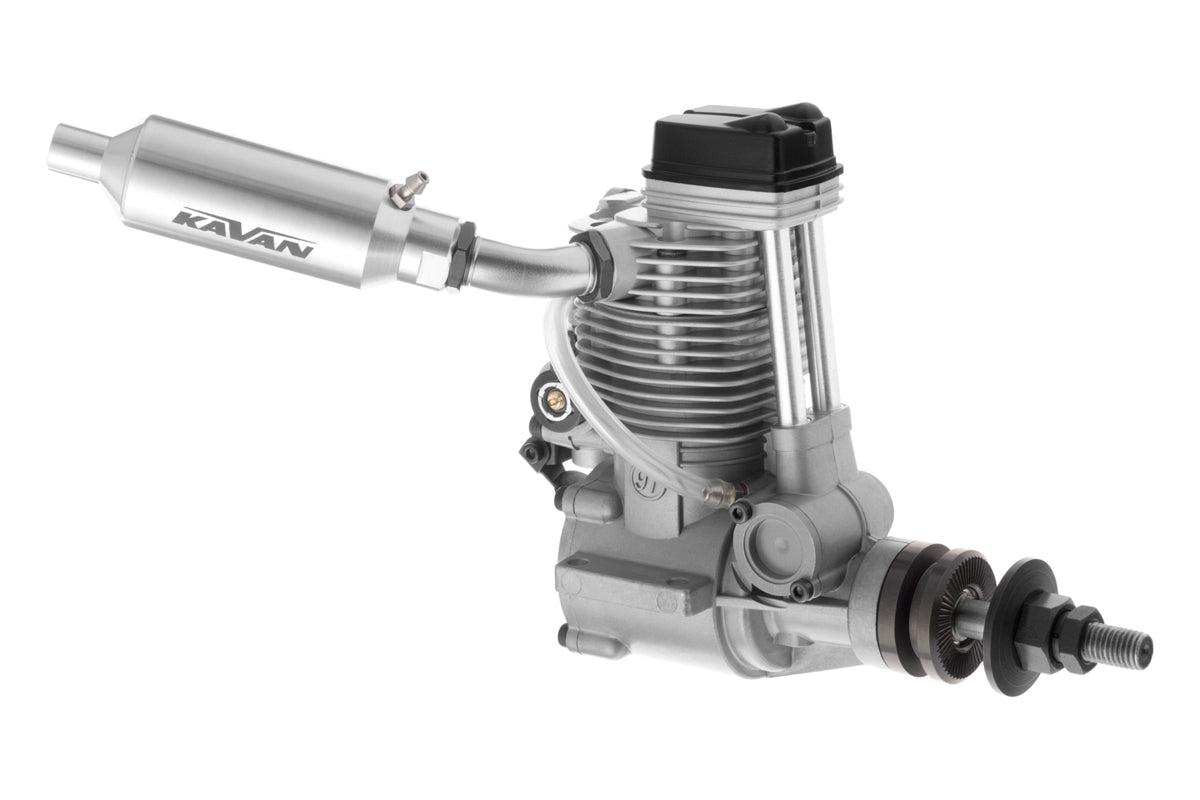

KAVAN FS-120AR is a four-stroke engine with a glow plug of classic ringed design, ideal especially for scale model aircraft. It is equipped with a twin-needle RC carburettor with a choke; the set also includes a muffler.
The crankshaft has an UNF 5/16-24 propeller nut/bolt thread. A special safety propeller lock nut is supplied with the engine.
Recommended propeller:
Running-in: 15×8"
Sportster & Aerobatic: 13×11", 14×10"
Scale: 16×6", 16×8", 17×6"
Engine set includes: engine with RC carburettor and muffler, instruction manual.
| Displacement [ccm] | 19.96 |
| Cylinder count | 1 |
| Bore [mm] | 30.4 |
| Stroke length [mm] | 27.5 |
| Operating RPM [ot./min] | 2000 - 11000 |
| Motor power (10500RPM) [kW] | 1.6 |
| Weight [g] | 888 |
| Recommended tank volume [ml] | 450 - 500 |
| Propeller nut thread | 5/16 UNF |
