KAVAN four-stroke engines are an excellent choice for any "Sunday flyers“ sporty, aerobatic or scale model aircraft. Reliable operation and very easy running-in and fine-tuning make them a great choice great value & affordable engine option. Given adequate care and maintenance, they will reliably power your models for many years to come.

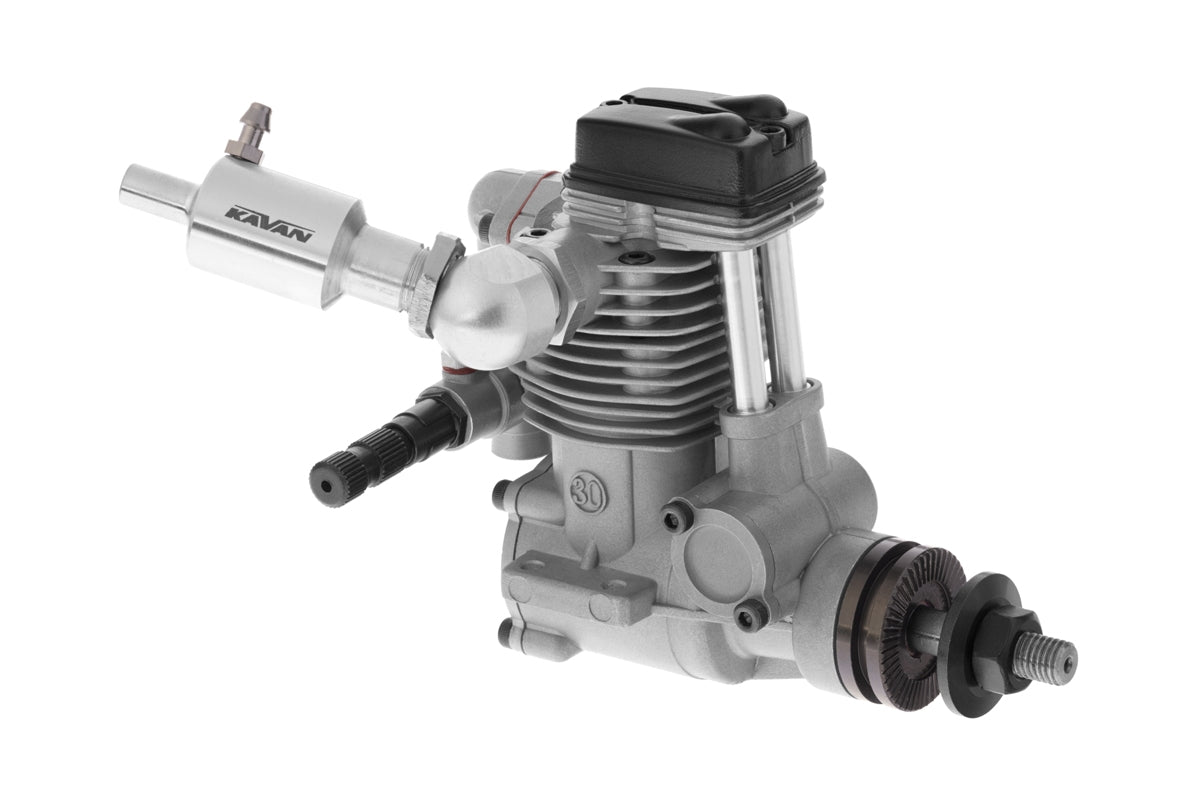

KAVAN FS-30AR is a four-stroke engine with a glow plug of classic ringed design, ideal especially for scale model aircraft. It is equipped with a twin-needle RC carburetor; the set also includes a muffler.
The crankshaft has an UNF 1/4-28 propeller nut/bolt thread. A special safety propeller lock nut is supplied with the engine.
Recommended propeller:
Running-in: 9x6"
Sportster & Aerobatic: 9x6" - 10x6"
Scale: 10×6", 11x5"
Engine set includes: engine with RC carburettor and muffler, instruction manual.
| Displacement [ccm] | 5 |
| Cylinder count | 1 |
| Bore [mm] | 19.7 |
| Stroke length [mm] | 16.4 |
| Operating RPM [ot./min] | 2500 - 10000 |
| Motor power (9500RPM) [W] | 400 |
| Weight [g] | 275 |
| Recommended tank volume [ml] | 100-180 |
| 1/4 UNF |
