KAVAN S52AII. EXPECTED LATE JULY
KAVAN S52AII. EXPECTED LATE JULY
Couldn't load pickup availability
KAVAN two-stroke engines are an excellent choice for any "Sunday flyers“ sporty, aerobatic or scale model aircraft. Reliable operation and very easy running-in and fine-tuning make them a great choice great value & affordable engine option. Given adequate care and maintenance, they will reliably power your models for many years to come.

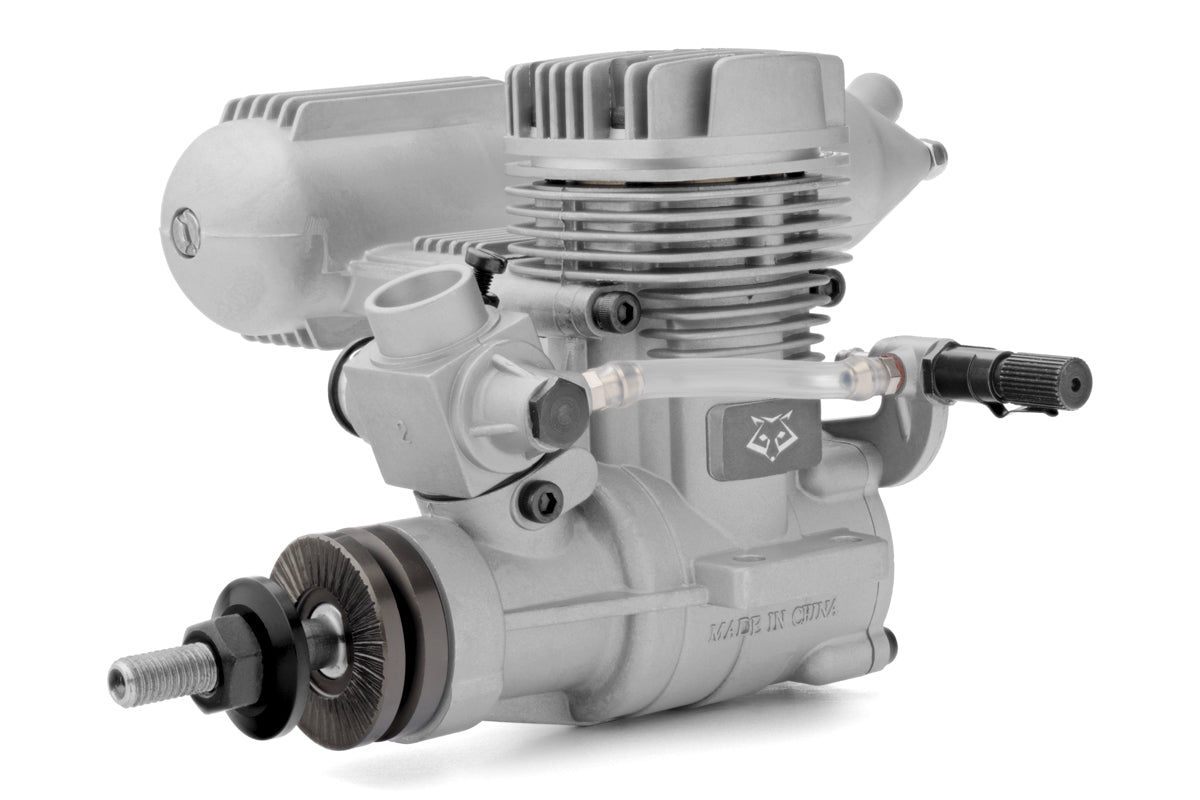

KAVAN S52AII is a two-stroke engine with a glow plug of classic ABC design (Aluminium piston - Brass liner - Chromed), ideal for model aircraft of all kinds. It is equipped with a twin-needle RC carburettor; the set also includes a muffler.
The crankshaft has an UNF 1/4-28 propeller nut/bolt thread.
Recommended propeller:
Running-in: 12×5"
Sportster and Aerobatic: 11×7", 11×8"
Scale: 12×5", 12×6"
Engine set includes: engine with RC carburettor and muffler, instruction manual.
| Displacement [ccm] | 8.47 |
| Cylinder count | 1 |
| Bore [mm] | 22.4 |
| Stroke length [mm] | 21.5 |
| Operating RPM [ot./min] | 2000 - 17500 |
| Motor power (17500RPM) [kW] | 1.47 |
| Weight [g] | 397 |
| Recommended tank volume [ml] | 250 - 350 |
| Propeller nut thread | 1/4 UNF |
