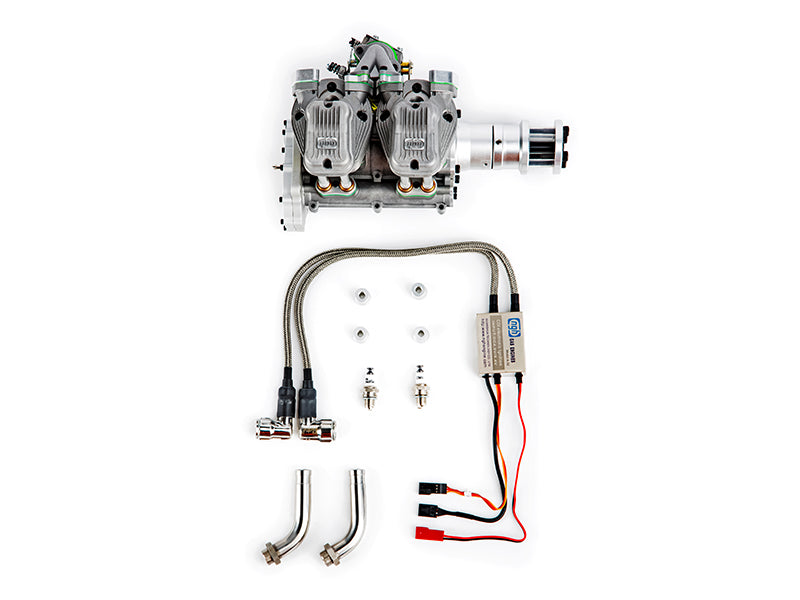

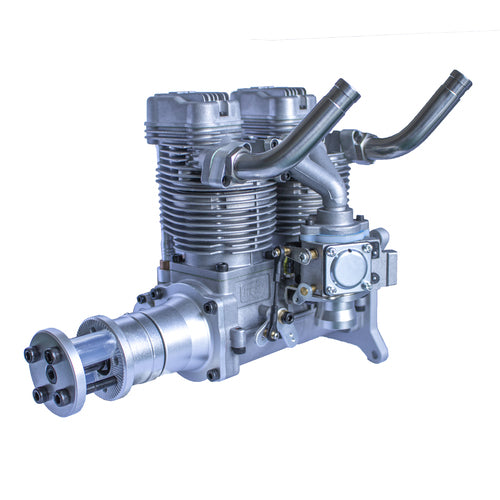

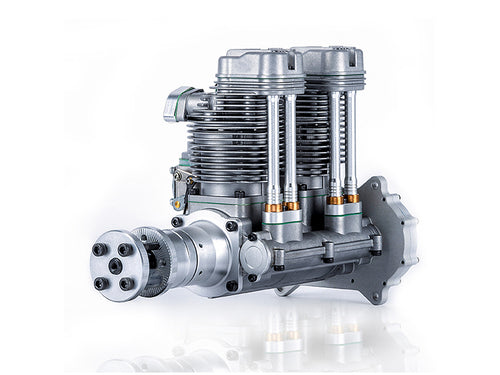

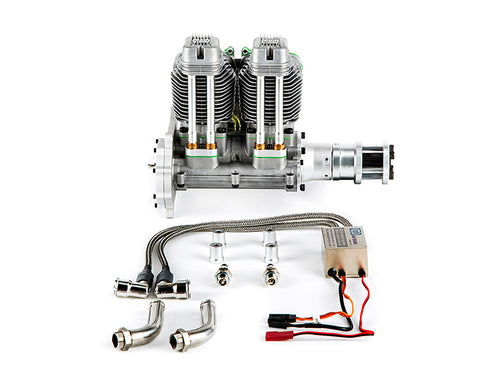

NGH 60i2

GF60i2 is a professional-grade 4-stroke gasoline engine built by NGH engineers for RC aircraft and fixed wing UAV. It has high performance, low fuel consumption, large torque, low noise, compact structure and beautiful appearance.

The rear carburetor facilitates the engine adjustment, connecting rod with needle bearing can lubricate the hinge pin better, the unique separation lubrication circulation system makes the engine more fully lubricated and unique double piston ring (one lubricating ring and one sealing ring) can seal and lubricate better. The unique 90 degree crank angle double cam mechanism can effectively reduce vibration and increase stability.

Displacement: 59.82cc（29.91cc*2）

Bore: 36mm

Stroke: 29.4mm

Practical speed range: 1200-7500rpm

Output power: 5.1HP / 8000rpm

Tensile force: 10kg

Engine weight: 2800g

Exhaust pipe weight: 100g

Igniter Weight: 160g

Ignition Power: DC6V-14.4V   1000mAH

Recommended propeller:  22x8-10

Fuel: 92 # unleaded petrol + fully synthetic 2T lubricants

Lubrication ratio: Gasoline: Lubricant = 35: 1
