FirebrandAeroRC

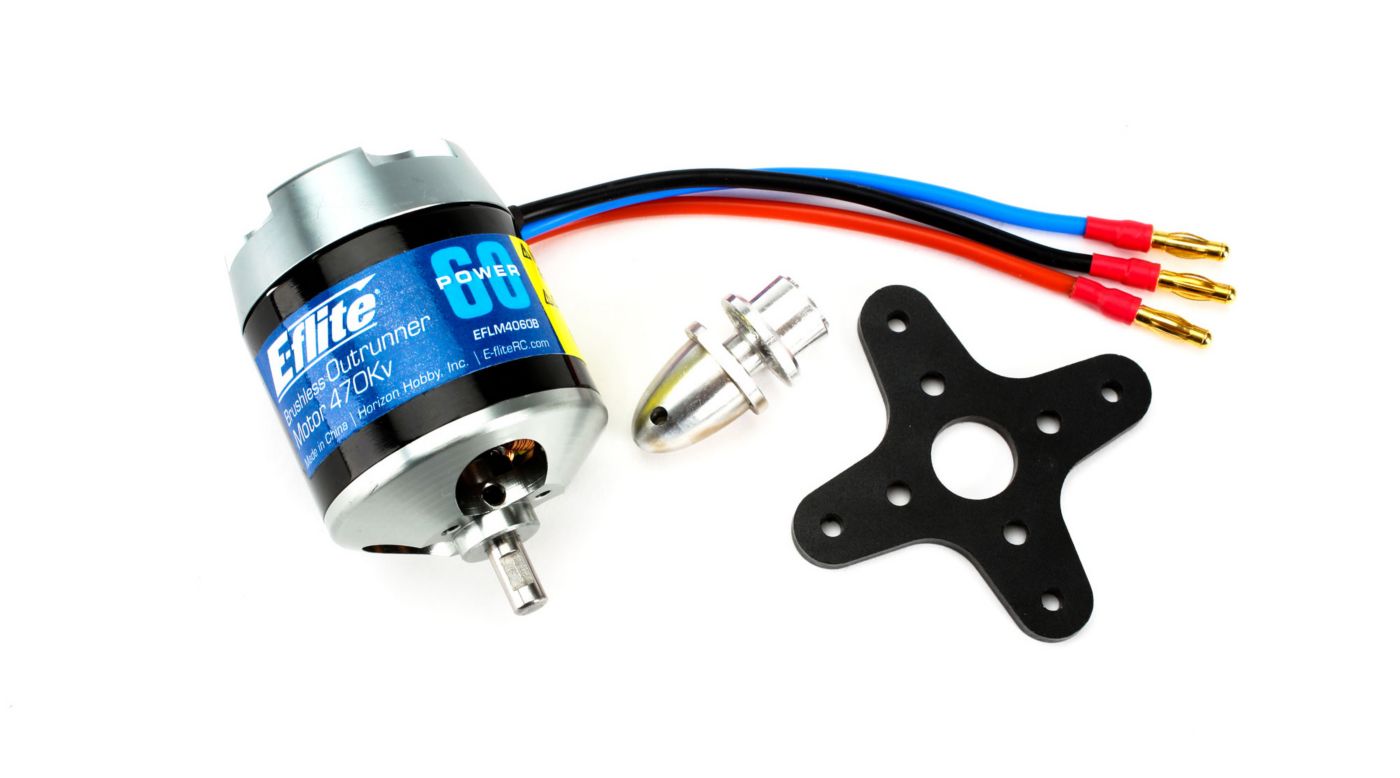

Eflite Power 60 Brushless Outrunner Motor, 470Kv
Eflite Power 60 Brushless Outrunner Motor, 470Kv
Regular price
$255.00 NZD
Regular price
Sale price
$255.00 NZD
Unit price
/
per
Couldn't load pickup availability
Key Features
- Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
- High torque, direct drive
- Includes mount, prop adapter and mounting hardware
- Quiet, efficient operation
- External radial rotor design
Overview
Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.
| Application: | Airplane |
| Motor Type: | Brushless Sensorless Outrunner |
| Bearings or Bushings: | One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings |
| Connector Type: | 4mm Bullet |
| Idle Current (Io): | 2.1A @ 20V |
| RPM/Volt (Kv): | 470Kv |
| Recommended Prop Range: | 15 x 8 - 17 x 7 electric propeller |
| Recommended Speed Control: | 80A brushless |
| Resistance: | 0.02 ohm |
| Shaft Diameter: | 0.24 in (6.0mm) |
| Size: | Replacement for 60-size glow engines |
| Voltage: | 22.2V (6S LiPo, 4400-5000mAh) |
| Wire Gauge: | 14 AWG |
