Robbe Series X Premium Low Profile Servo - FS2107X 17kg @7.4v. EXPECTED LATE DEC.
Robbe Series X Premium Low Profile Servo - FS2107X 17kg @7.4v. EXPECTED LATE DEC.
Couldn't load pickup availability

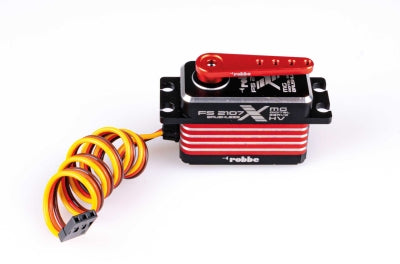

The Robbe FS 2107X is an exceptionally powerful, fast and robust low-profile servo in a compact, CNC-milled aluminium housing with milled cooling fins for better heat dissipation. It has a stable yet backlash-free metal gearbox and ball bearings on the output. The FS 2107X has an enormously high actuating force of 21 kg/cm at 8.4 volts and an extremely short actuating time. It can therefore be used on all rudders in all aircraft categories. It is also ideally suited as a weight-optimised replacement for standard servos in large models or jets.
The new Robbe X series servos are precision-manufactured high-voltage digital servos in various sizes for different applications in RC modelling.
They have CNC-milled aluminium housings with cooling fins for better heat dissipation and robustness, metal/steel gears for low backlash and high positioning precision, high-quality ball bearings, coreless- or brushless motors, high protection against external influences (IP56) and a soft start function that moves the servos slowly and gently to the neutral position when they are switched on.
These features ensure a long and reliable service life for the servos and therefore also for your models.
| Servo Speed sec./60° (4,8V) HV: | 0,13 |
|---|---|
| Servo Speed sec./60° (6V) HV: | 0,1 |
| Servo Speed sec./60° (7,4V) HV: | 0,08 |
| Servo Speed sec./60° (8,4V) HV: | 0,07 |
| Servo Torque kg/cm (4,8V) HV: | 9,5 |
| Servo Torque kg/cm (6V) HV: | 13,5 |
| Servo Torque kg/cm (7,4V) HV: | 17 |
| Servo Torque kg/cm (8,4V) HV: | 21 |
| Gearbox Type: | Steel |
| Weight (g): | 70 |
| Length (mm): | 41 |
| Wide (mm): | 20,5 |
| Height (mm): | 27,4 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/5,96mm |
| Voltage - HV: | 4,8 - 8,4 |
