Robbe Series X Premium Mini/Midi Servo FS1808X HV MG (18kg @ 7.4v)
Robbe Series X Premium Mini/Midi Servo FS1808X HV MG (18kg @ 7.4v)
Regular price
$115.00 NZD
Regular price
Sale price
$115.00 NZD
Unit price
/
per
Couldn't load pickup availability

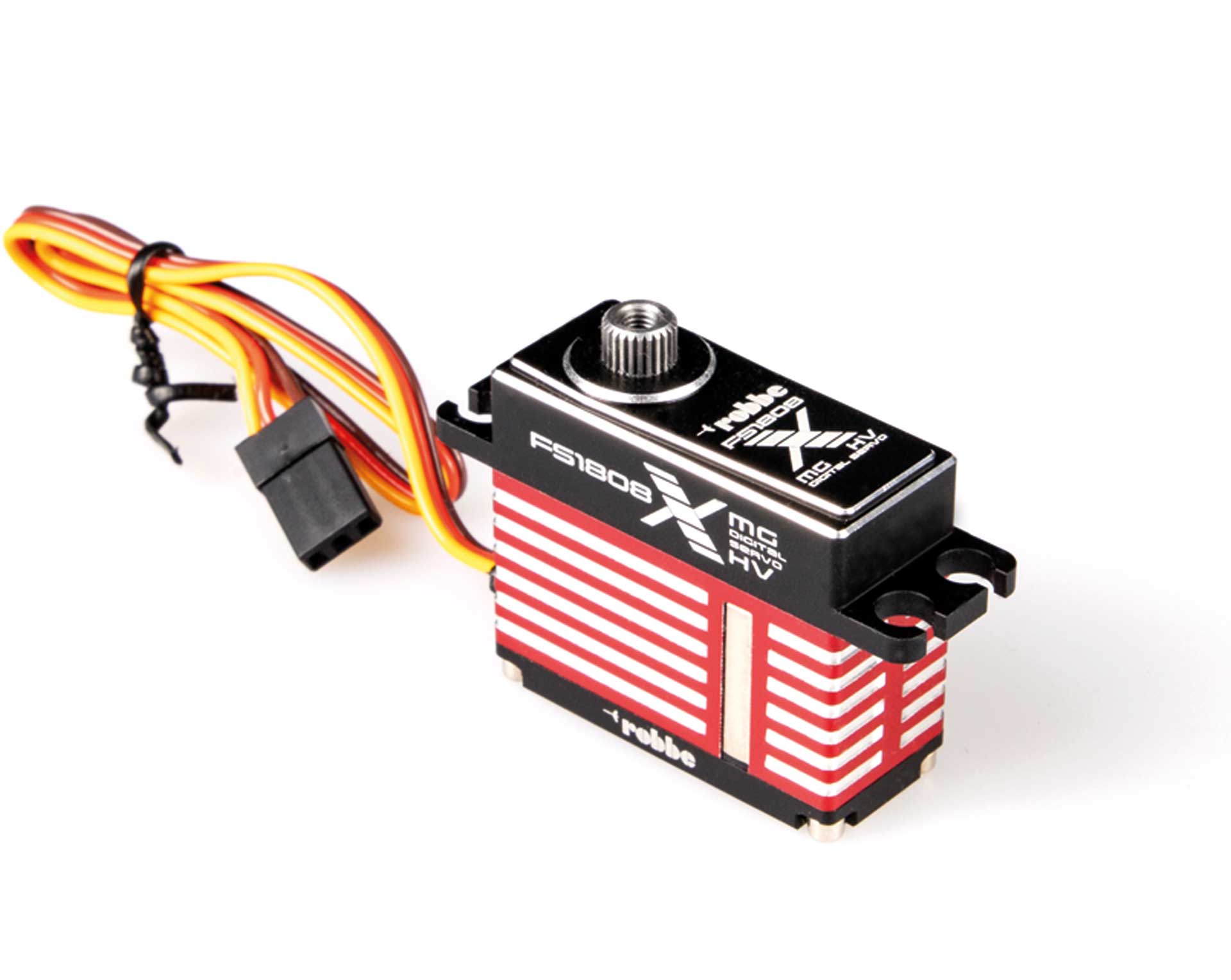

The Robbe FS 1808X is an extraordinarily powerful, extremely fast and robust midi servo in a compact, CNC-milled aluminium housing with milled cooling fins for better heat dissipation. It has a stable yet backlash-free metal gearbox and ball bearings on the output. The FS 1808X has an extremely high actuating force of 18 kg/cm at 7.4 volts and an extremely short actuating time. It can therefore be used particularly well in 3D and aerobatic models in the 60-78" class on all control surfaces. It is also ideally suited as a weight-optimised replacement for standard servos in large models or jets.
| Servo Speed sec./60° (4,8V) HV: | 0,16 |
|---|---|
| Servo Speed sec./60° (6V) HV: | 0,12 |
| Servo Speed sec./60° (7,4V) HV: | 0,10 |
| Servo Speed sec./60° (8,4V) HV: | 0,09 |
| Servo Torque kg/cm (4,8V) HV: | 13 |
| Servo Torque kg/cm (6V) HV: | 14,5 |
| Servo Torque kg/cm (7,4V) HV: | 18 |
| Servo Torque kg/cm (8,4V) HV: | 22 |
| Gearbox Type: | Steel |
| Weight (g): | 35 |
| Length (mm): | 35,6 |
| Wide (mm): | 15 |
| Height (mm): | 32,4 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/5,96mm |
| Betriebspannung (V) HV: | 4,8 - 8,4 |
