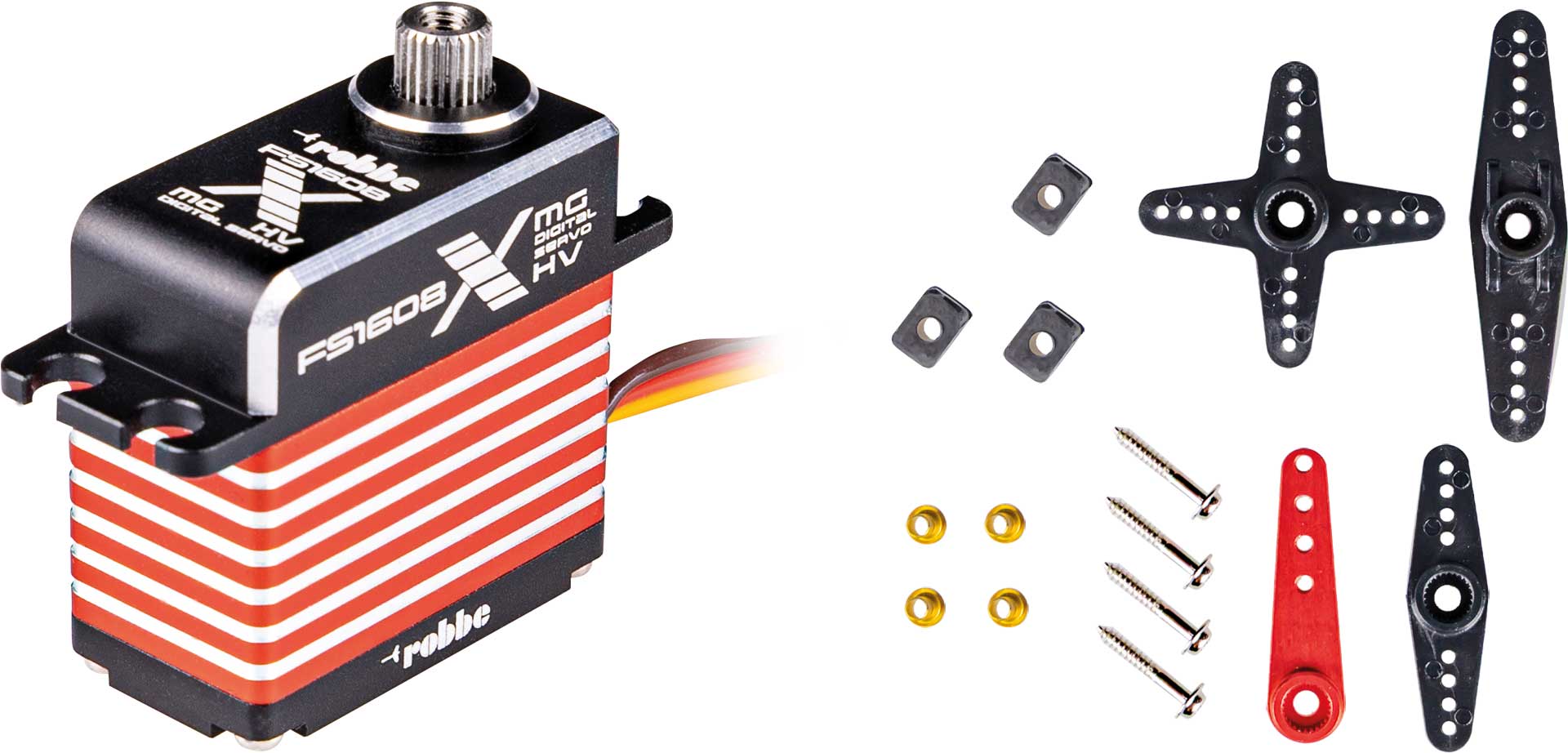

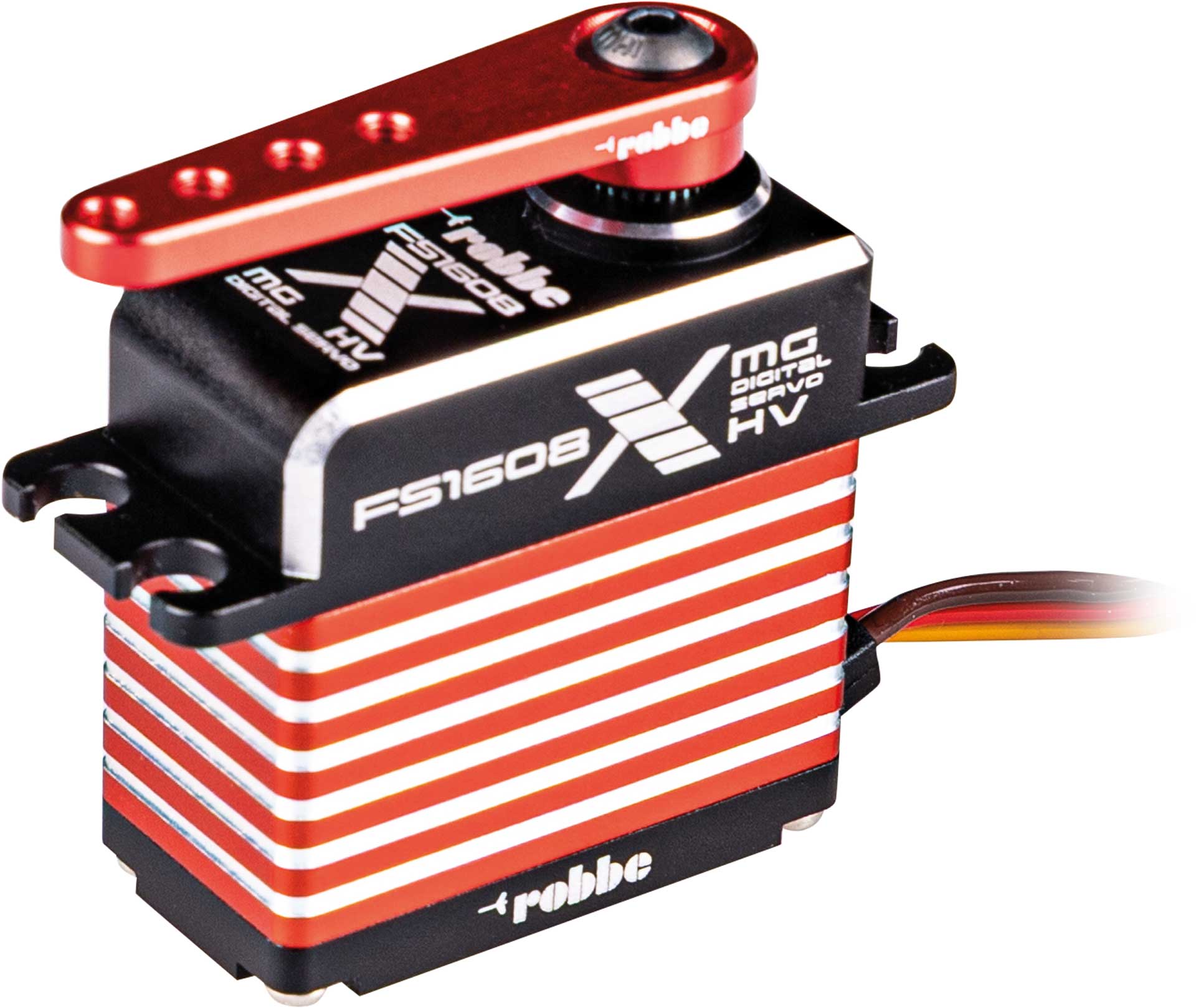

Robbe Series X Premium Servo - FS1608X 11kg @7.4v
Robbe Series X Premium Servo - FS1608X 11kg @7.4v
Couldn't load pickup availability
The Robbe FS 1609X is an exceptionally strong and robust servo in a compact, CNC-milled standard aluminium housing with milled cooling fins for better heat dissipation. It has a stable yet backlash-free metal gearbox and ball bearings on the output. The FS1608X has a high actuating force of 16kg/cm at 8.4 volts and a low actuating time.
Dimensions make it the ideal replacement or upgrade for the Hitec HS5254 & HS225 mini servo.
The new Robbe X series servos are precision-manufactured high-voltage digital servos in various sizes for different applications in RC modelling.
They have CNC-milled aluminium housings with cooling fins for better heat dissipation and robustness, metal/steel gears for low backlash and high positioning precision, high-quality ball bearings, coreless- or brushless motors, high protection against external influences (IP56) and a soft start function that moves the servos slowly and gently to the neutral position when they are switched on.
These features ensure a long and reliable service life for the servos and therefore also for your models.
| Servo Speed sec./60° (4,8V) HV: | 0,11 |
|---|---|
| Servo Speed sec./60° (6V) HV: | 0,1 |
| Servo Speed sec./60° (7,4V) HV: | 0,08 |
| Servo Speed sec./60° (8,4V) HV: | 0,07 |
| Servo Torque kg/cm (4,8V) HV: | 6 |
| Servo Torque kg/cm (6V) HV: | 8 |
| Servo Torque kg/cm (7,4V) HV: | 11 |
| Servo Torque kg/cm (8,4V) HV: | 16 |
| Gearbox Type: | Steel |
| Weight (g): | 48,6 |
| Length (mm): | 32,5 |
| Width (mm): | 16,8 |
| Height (mm): | 32 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/5,96mm |
| Betriebspannung (V) HV: | 4,8 - 8,4 |
