Robbe Series X Premium Servo - FS4009X 29kg @7.4v
Robbe Series X Premium Servo - FS4009X 29kg @7.4v
Couldn't load pickup availability

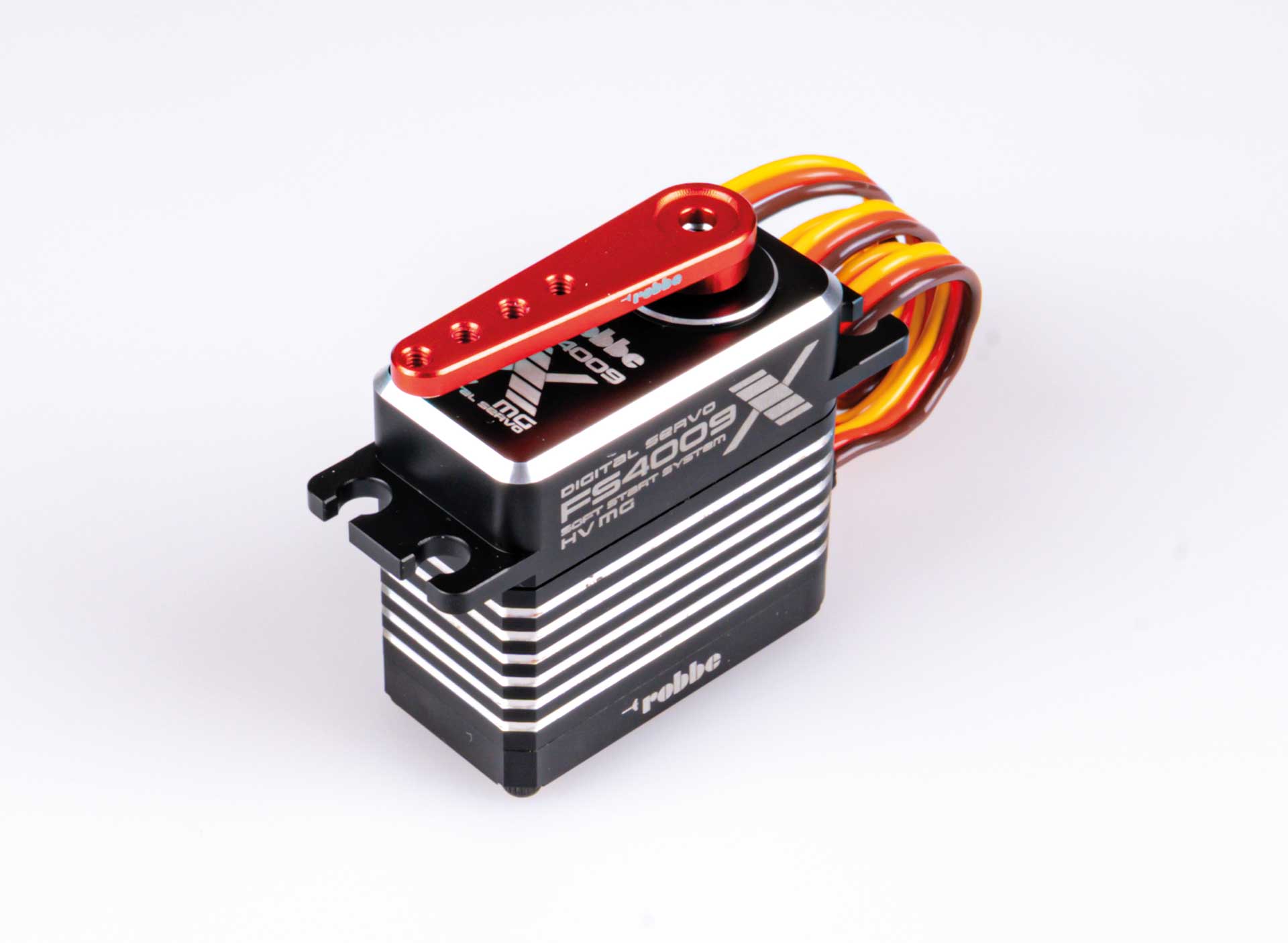

The Robbe FS 4009X is an exceptionally strong and robust servo in a compact, CNC-milled standard aluminium housing with milled cooling fins for better heat dissipation. It has a stable yet backlash-free metal gearbox and ball bearings on the output. The FS 4009X has an enormously high actuating force of 32kg/cm at 8.4 volts and a low actuating time. It can therefore be used in all aircraft categories on all control surfaces. The FS 4009X is also the best choice for long-lasting control in RC cars or boats.
The new Robbe X series servos are precision-manufactured high-voltage digital servos in various sizes for different applications in RC modelling.
They have CNC-milled aluminium housings with cooling fins for better heat dissipation and robustness, metal/steel gears for low backlash and high positioning precision, high-quality ball bearings, coreless- or brushless motors, high protection against external influences (IP56) and a soft start function that moves the servos slowly and gently to the neutral position when they are switched on.
These features ensure a long and reliable service life for the servos and therefore also for your models.
| Servo Speed sec./60° (4,8V) HV: | 0,19 |
|---|---|
| Servo Speed sec./60° (6V) HV: | 0,14 |
| Servo Speed sec./60° (7,4V) HV: | 0,11 |
| Servo Speed sec./60° (8,4V) HV: | 0,09 |
| Servo Torque kg/cm (4,8V) HV: | 20 |
| Servo Torque kg/cm (6V) HV: | 25 |
| Servo Torque kg/cm (7,4V) HV: | 29 |
| Servo Torque kg/cm (8,4V) HV: | 32 |
| Gearbox Type: | Steel |
| Weight (g): | 77 |
| Length (mm): | 40 |
| Wide (mm): | 20 |
| Height (mm): | 40,5 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/5,94mm |
