Robbe Series X Premium Servo - FS6315X 6.3kg @ 7.4v
Robbe Series X Premium Servo - FS6315X 6.3kg @ 7.4v
Regular price
$185.00 NZD
Regular price
Sale price
$185.00 NZD
Unit price
/
per
Couldn't load pickup availability

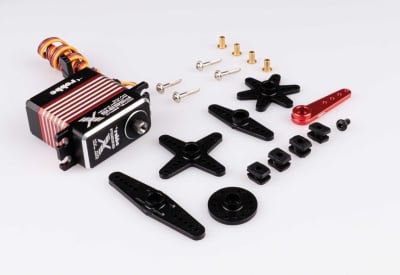

The Robbe FS 6315X is an extremely powerful and robust servo in a compact, CNC-milled standard aluminium housing with milled cooling fins for better heat dissipation. It has a stable and backlash-free steel gearbox and ball bearings on the output. The FS 6315X has an enormously high actuating force of 63kg/cm at 8.4 volts (or 58 at 7.4) and low actuating time. It can therefore be used in all aircraft categories on all control surfaces, especially in large models and jets.
| Bearing: | •• |
|---|---|
| Servo Speed sec./60° (4,8V) HV: | 0,2 |
| Servo Speed sec./60° (6V) HV: | 0,18 |
| Servo Speed sec./60° (7,4V) HV: | 0,16 |
| Servo Speed sec./60° (8,4V) HV: | 0,14 |
| Servo Torque kg/cm (4,8V) HV: | 45 |
| Servo Torque kg/cm (6V) HV: | 50 |
| Servo Torque kg/cm (7,4V) HV: | 58 |
| Servo Torque kg/cm (8,4V) HV: | 63 |
| Gearbox Type: | Steel |
| Weight (g): | 79 |
| Length (mm): | 41 |
| Wide (mm): | 20 |
| Height (mm): | 40 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/5,95mm |
| Voltage: | 4,8 - 8,4 |
