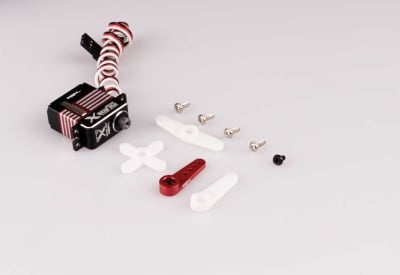

Robbe Series X Premium Servo - FS803X 6.3kg @ 7.4v
Robbe Series X Premium Servo - FS803X 6.3kg @ 7.4v
Regular price
$99.00 NZD
Regular price
Sale price
$99.00 NZD
Unit price
/
per
Couldn't load pickup availability
The Robbe FS 806X is an exceptionally strong, robust mini servo in the 12mm class for its size, in a compact, CNC-milled aluminium housing with milled cooling fins for better heat dissipation. It has a stable and backlash-free steel gearbox and ball bearings on the output
| Bearing: | •• |
|---|---|
| Servo Speed sec./60° (4,8V) HV: | 0,095 |
| Servo Speed sec./60° (6V) HV: | 0,084 |
| Servo Speed sec./60° (7,4V) HV: | 0,07 |
| Servo Speed sec./60° (8,4V) HV: | 0,58 |
| Servo Torque kg/cm (4,8V) HV: | 5,1 |
| Servo Torque kg/cm (6V) HV: | 5,7 |
| Servo Torque kg/cm (7,4V) HV: | 6,3 |
| Servo Torque kg/cm (8,4V) HV: | 7,7 |
| Gearbox Type: | Steel |
| Weight (g): | 20 |
| Length (mm): | 23 |
| Wide (mm): | 12 |
| Height (mm): | 33 |
| Servo type: | High Voltage |
| Gear tooth: | 25Z/4,93mm |
| Voltage: | 4,8 - 8,4 |
