Unilight Controller Modul-4

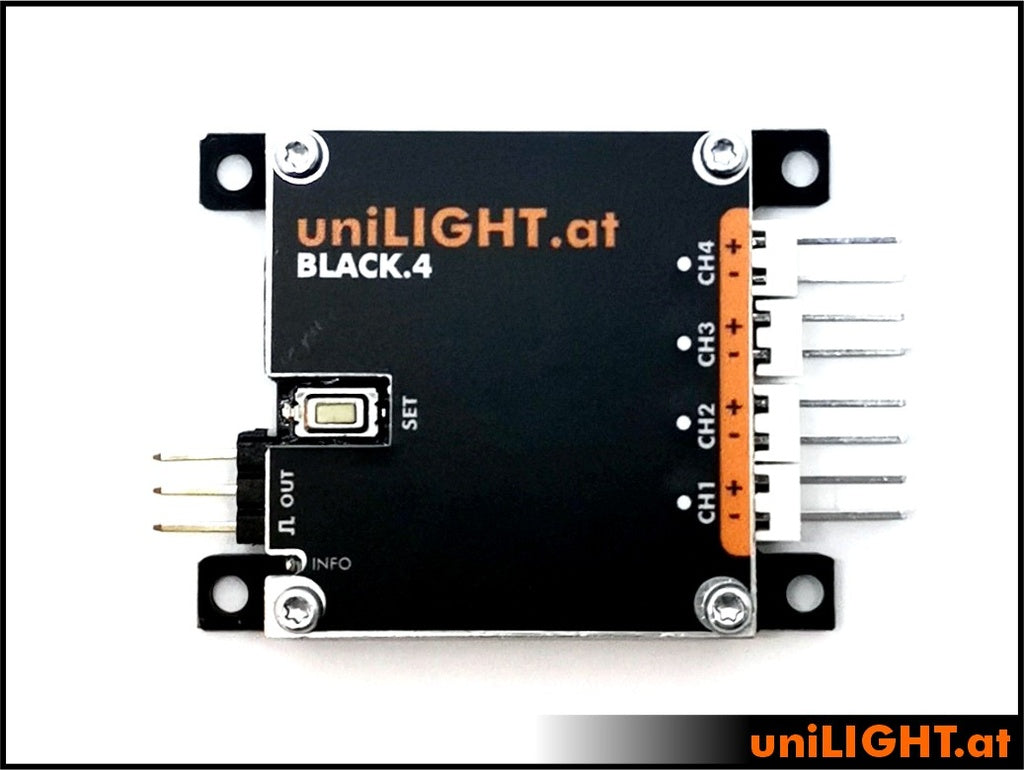

4-Channel state of the art light controller: BLACK.4

Our new control unit Black.4 is the new, slim reference desing for most light systems. It delivers fast and brilliant results for all ranges of modelling and was massively improved in all areas of operation. With the four functions: strobe, beacon/ACL, navigation and spotlights - all controllable over one servo channel - it is perfectly usable for nearly each aircraft.

New in Black Series

• Dynamic nicer, faster and sharper defined light effects
• Variety more light patterns preprogrammed
• Dimensions reduced size and weight, polarity correct output sockets
• Safety basic shortcut protection, cut off and automatic restore
• Power up to 5 ampere per channel, 8 ampere combined
• Battery deep discharge protection for connected Lipos
• Master-Slave activation by the receiver power
• Scale soft transition as special function selectable
• Sport navigation with strobe function for many sport applications
• Future new hardware platform allows future updates

Special Function

• Slow Signals a soft transition simulates a soft glow-on and glow-off like an old glow bulb or simulates a rotating beacon effect of slow blinking functions.
• Fast Signals during strobe sequences a basic level of around 20% power is given to the light. With these function a strong strobe light can be operated as navigation light AND at the same time be a strobe signal. Perfectly usable on sport models: one light, two functions

Technical Data

• receiver side 4.8-9.6V
• weight ~8g, without wire
• dimension 50x35x6mm
• load per channel 5A to 16V (>6A peak)
• total load up to 8A
• galvanically isolated circuits
• operation without RC possible
• 15+1 classic effects with variable speed
• 15+1 modern effects with variable speed
• 15+1 special effects with variable speed
• soft transition programmable
• sport-nav mode programmable
• short circuit protection
• deep discharge protection
• reverse polarity protection
• simple servo output for dropouts, switches or valves
• including quick-snap mounting brackets
